ESP-WROOM-02
WROOM module · based on ESP8266 (ESP8266EX) · Active unverified
- Xtensa L106
- 1× @ 160 MHz
- Wi-Fi 4
- 2 MB flash
- 11 GPIO
- PCB antenna
As an affiliate we may earn from qualifying purchases. Prices and availability are set by AliExpress.
Every figure here is checked against Espressif’s official datasheets. We’ve taken every care to keep it accurate — but datasheets are dense and mistakes happen, so if something looks off, please report it.
The ESP-WROOM-02 is a general-purpose Espressif module built on the ESP8266 single-core Xtensa L106 SoC clocked up to 160 MHz. It pairs 2.4 GHz Wi-Fi 4 with 2 MB flash, routes the radio to a PCB antenna, and breaks out 11 GPIO; the module measures 18 × 20 × 2.8 mm.
It's a lean, low-cost option for simple connected products where board space and BOM cost matter most.
Strapping pins
⚑ flag an errorGPIOs sampled at reset — avoid driving these at power-up.
| Pin | Default | Bit | Function |
|---|---|---|---|
GPIO0 | pull-up | 1 | boot_mode |
GPIO2 | pull-up | 1 | boot |
MTDO | pull-down | 0 | boot |
Compute & memory
⚑ flag an error| CPU | Xtensa L106, 1-core |
|---|---|
| Max clock | 160 MHz |
| SRAM | — KB |
| ROM | — KB |
| Flash options | 2 MB |
| PSRAM | None |
| Co-processor | none |
Wireless
⚑ flag an error| Wi-Fi | Wi-Fi 4 |
|---|---|
| Wi-Fi bands | 2.4GHz |
| Bluetooth | — |
| 802.15.4 (Thread/Zigbee) | No |
| Antenna | PCB |
Peripherals & I/O
⚑ flag an error| Usable GPIO | 11 |
|---|---|
| ADC | 1× 10-bit |
| USB | USB-Serial(external) |
| UART / SPI / I²C / I²S | 2 / 1 / 1 / 1 |
| TWAI (CAN) | No |
| SD/MMC | Yes |
| Ethernet MAC | No |
| Touch | 0 |
Power
⚑ flag an error| Operating voltage | 2.7-3.6 V |
|---|---|
| Deep sleep | 20 µA |
Physical
⚑ flag an error| Dimensions | 18 × 20 × 2.8 mm |
|---|---|
| Pin count | 18 |
| Temp range | -40 to 85 °C |
| Mounting | SMD castellated |
| Lifecycle | Active |
Security
⚑ flag an error| Secure boot | No |
|---|---|
| Flash encryption | No |
| Crypto | — |
| Digital signature | No |
| TRNG | Yes |

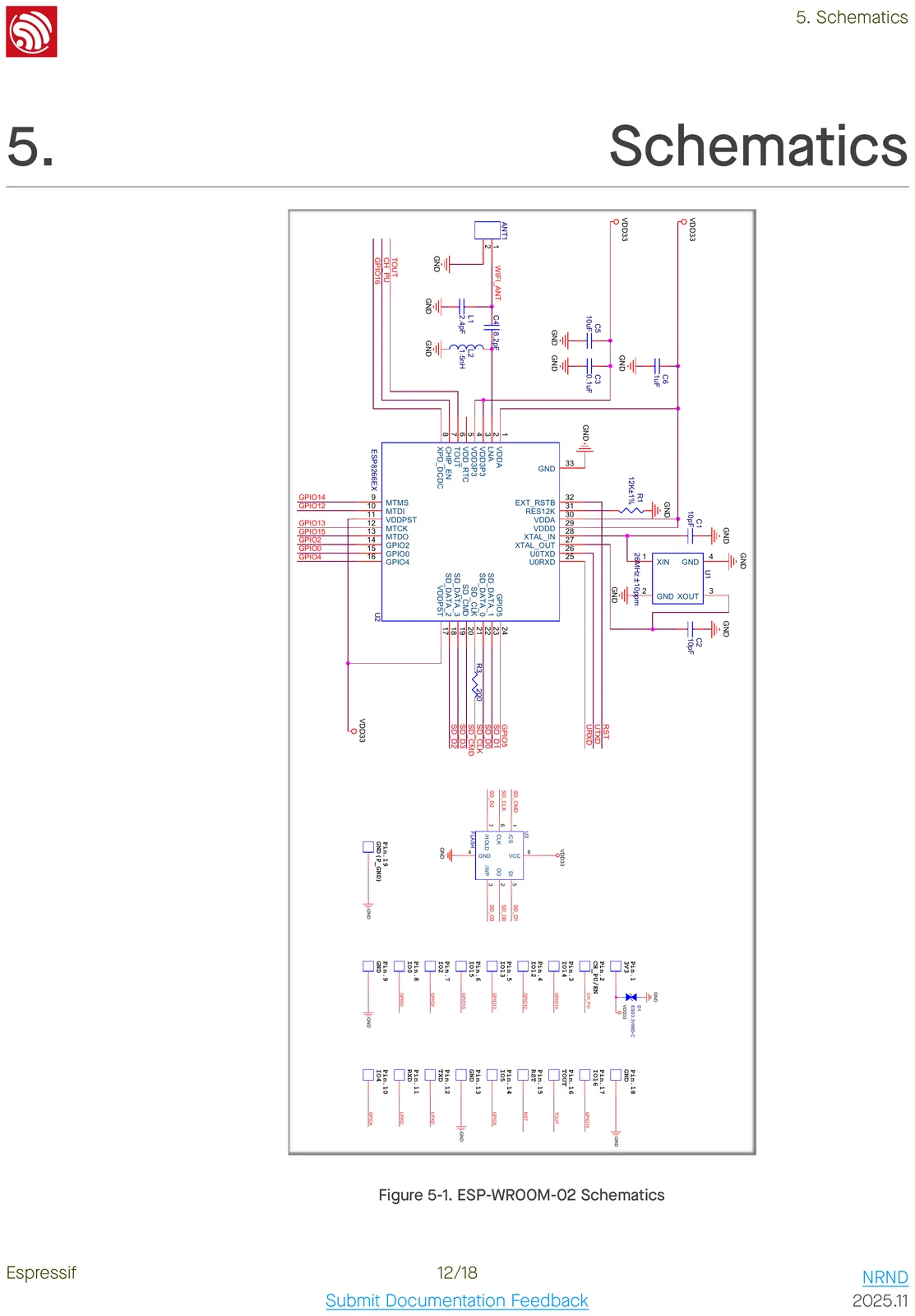

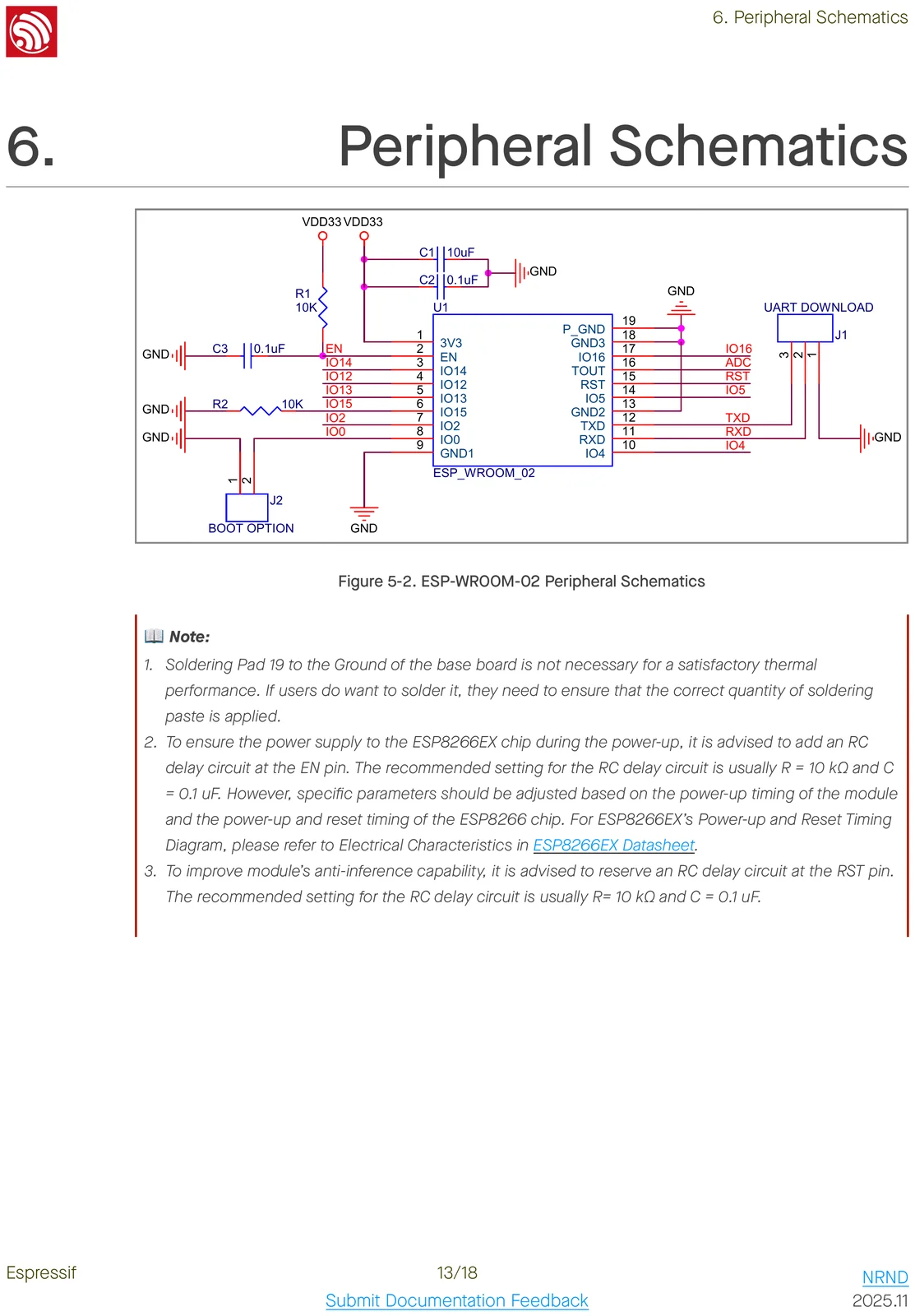

Schematics

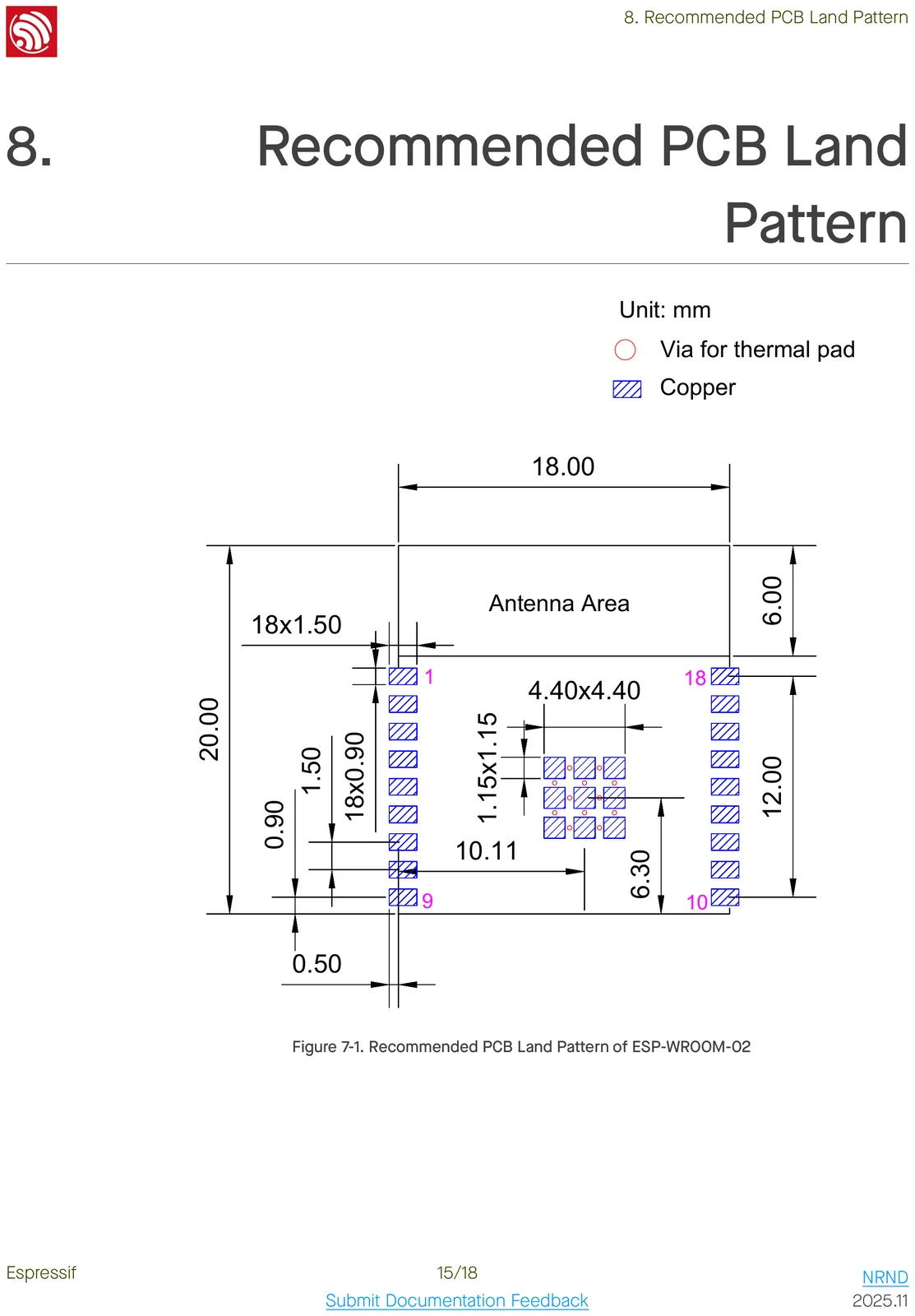

Mechanical & CAD
Getting started
Frameworks: ESP8266 Arduino core — fully supported · ESP8266 RTOS SDK (Espressif's SDK for the ESP8266) · MicroPython.
Programming uses UART — most dev boards include a USB-to-UART bridge; for the bare module add your own (e.g. CP2102/CH340).
Open-source projects using this module
Public GitHub projects whose KiCad design files reference the ESP-WROOM-02.
- smarthomefans/z2m_partner ★ 189
Hardware module for iobroker.zigbee
- kerikun11/IR-Station ★ 54
Infrared Remote Controller with ESP8266 WiFi-module. You can control your home appliances with your smartphone or laptop.
- Al-Nafuur/United-Carts-of-Atari ★ 40
Firmware for PlusCart and UnoCart
- SpacehuhnTech/deauther-andromeda-pcb ★ 32
The board files for the long range deauther
- Hasenpups/WLED_All-in-one_ESP32_Controller ★ 19
Frequently asked questions
Does the ESP-WROOM-02 have Wi-Fi and Bluetooth?
It provides 2.4 GHz Wi-Fi 4.
How much memory does the ESP-WROOM-02 have?
It comes with 2 MB of flash and the ESP8266 has — KB of on-chip SRAM.
How many GPIO pins does the ESP-WROOM-02 have?
The module breaks out 11 GPIO, with up to 1 10-bit ADC channels. See the full pinout above.
Can I use the ESP-WROOM-02 with the Arduino IDE?
Yes — install the ESP8266 Arduino core and pick an ESP8266-based board. You can also use the ESP8266 RTOS SDK or MicroPython.
How do I flash the ESP-WROOM-02?
Programming uses UART — most dev boards include a USB-to-UART bridge; for the bare module add your own (e.g. CP2102/CH340).
Is the ESP-WROOM-02 5 V tolerant?
No. It runs at 2.7-3.6 V and its GPIO are not 5 V tolerant — level-shift any 5 V signals.
Can I use an external antenna with the ESP-WROOM-02?
Most Espressif modules are also offered in a "-U" / "-1U" variant that swaps the on-board PCB antenna for a U.FL/IPEX connector for an external antenna — otherwise identical. Check this part's datasheet for the exact variant name.
